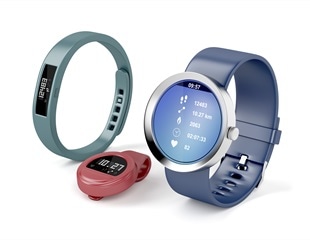

Fitness trackers are everywhere these days. You see them on people’s wrists in the gym, at the office, and even while they sleep. But have you ever wondered what makes these small devices so smart? How do they know how many steps you took, how fast your heart is beating, or how well you slept last night? The answer is sensors. Tiny, advanced sensors are the heart of every fitness tracker, quietly working together to measure your body’s movements and activities. Understanding what sensors are inside your fitness tracker can help you make better choices, use your device more effectively, and even spot the next big tech trend.
Let’s dive into the world of fitness tracker sensors, explore what they do, and learn why they matter for your health and fitness goals.
Why Sensors Matter In Fitness Trackers
Fitness trackers have changed how people think about their health. They provide real-time data and motivation, but all this is only possible because of advanced sensors. These sensors collect raw data from your body and environment. The tracker’s software then processes this data into numbers and insights you can use.
Without accurate sensors, fitness trackers would be little more than fancy watches. The type and quality of sensors inside your device determine what it can track—steps, calories, heart rate, sleep, and more. Some models even use specialized sensors for activities like swimming or cycling.
Many users don’t realize that each function of their tracker relies on a different sensor. For example, step tracking, heart rate monitoring, and sleep analysis all use separate sensors with unique strengths and weaknesses. Knowing about these sensors can help you pick the right device, interpret your results correctly, and get the most value from your fitness tracker.
The Core Sensors In Modern Fitness Trackers
Let’s look at the main sensors found in almost every fitness tracker, from basic bands to advanced smartwatches.
Accelerometer
The accelerometer is the main sensor in almost every fitness band. It measures movement and direction in three dimensions. This is how your tracker counts steps, detects running, and even knows when you are sitting or standing.
Accelerometers work by measuring changes in speed and direction. When you walk, your wrist moves in a certain way. The sensor detects this movement pattern and counts it as a step. More advanced accelerometers can also estimate the intensity of your activity, which helps with calorie tracking.
One limitation: accelerometers can sometimes confuse non-walking movements (like waving your hand) for steps, though software is getting better at filtering out these errors.
Gyroscope
A gyroscope measures rotation and orientation. It helps your tracker understand how your wrist is turning or tilting. When combined with the accelerometer, it makes step counting and activity detection more accurate.
For activities like cycling or swimming, the gyroscope helps your device know if your body is moving in a certain direction or angle. In smartwatches, gyroscopes also help with gesture controls, like raising your wrist to wake the screen.
Without a gyroscope, a tracker can still work, but it may be less precise in tracking certain exercises or detecting when you change direction.
Optical Heart Rate Sensor (ppg Sensor)
The optical heart rate sensor (also called a PPG sensor, for photoplethysmography) shines a green LED light onto your skin and measures how the light is absorbed by your blood. As your heart beats, blood flow changes the amount of light reflected back. The sensor calculates your heart rate by analyzing these changes.
Most trackers have this sensor on the back, pressed against your wrist. They can give you real-time heart rate data during exercise, sleep, or daily activities.
While optical sensors are very convenient, they can be less accurate during intense exercise or if the tracker is worn loosely. Darker skin, tattoos, and hair can also affect accuracy. Some high-end models improve reliability with extra sensors or better algorithms.
Magnetometer
The magnetometer works like a digital compass. It detects magnetic fields and helps your tracker determine which way you are facing. This is especially useful for mapping outdoor runs or walks, and for navigation features in smartwatches.
When paired with GPS, the magnetometer can improve the accuracy of tracking your route and direction. In some devices, it also helps measure elevation when climbing stairs or hiking.
Many users overlook this sensor, but it makes a big difference for outdoor sports and accurate route tracking.
Barometer
The barometer measures air pressure. In fitness trackers, it is mainly used to detect changes in elevation. For example, it can tell if you are climbing stairs, hiking uphill, or going down an elevator.
By combining barometer data with step counting, your tracker can estimate how many floors you have climbed in a day. This is useful for people who want to track their effort in daily life, not just during workouts.
Barometers are more common in advanced fitness trackers and smartwatches. Basic bands may not include this sensor.
Ambient Light Sensor
The ambient light sensor measures the amount of light around you. This sensor helps your device adjust the screen brightness automatically, making it easier to read in bright sunlight or darkness.
But there’s another benefit: some sleep-tracking features use ambient light data to help determine when you fall asleep or wake up. Light levels in your room can affect your sleep quality, and your tracker can use this information to improve its sleep analysis.
Skin Temperature Sensor
Not all fitness trackers have a skin temperature sensor, but this feature is becoming more popular. It measures the temperature of your skin on your wrist. Changes in skin temperature can give clues about your overall health, stress, sleep, and even menstrual cycle.
For example, a sudden rise in skin temperature might signal you are getting sick or under stress. Some trackers use this sensor to provide early warnings or to fine-tune sleep tracking.
However, skin temperature is not the same as body (core) temperature, so always interpret these readings with care.
Spo2 Sensor (pulse Oximeter)
A SpO2 sensor measures your blood oxygen saturation. This is especially useful for tracking wellness, sleep quality, and altitude adaptation.
SpO2 sensors use red and infrared light to detect how much oxygen is in your blood. Low oxygen levels can signal breathing problems or sleep disorders, like sleep apnea. Some athletes use SpO2 tracking to monitor performance at high altitude.
Most new fitness trackers and smartwatches include this feature. It’s important to note that SpO2 readings from a wrist device are not as accurate as medical equipment, but they can still be helpful for general monitoring.
Electrical Heart Sensor (ecg Sensor)
Some high-end trackers and smartwatches have an ECG sensor. This sensor measures the electrical activity of your heart, similar to a medical electrocardiogram (ECG or EKG).
With an ECG sensor, you can check for irregular heart rhythms, like atrial fibrillation. This can be life-saving for people with heart conditions. Usually, you need to touch the device with your finger for a few seconds while the sensor records your heart’s electrical signals.
ECG sensors are found in advanced devices, such as the Apple Watch Series 4 and newer. They are not a replacement for full medical exams, but they can alert you to possible problems.
Bioimpedance Sensor
A bioimpedance sensor sends a tiny, harmless electrical current through your body to measure resistance. This helps estimate body composition—like body fat percentage, muscle mass, and hydration levels.
Bioimpedance is used in smart scales, but some fitness trackers now include this sensor. It can give you a better picture of your fitness progress beyond just weight or steps.
Results can vary depending on skin contact, hydration, and other factors, but it is a valuable feature for people interested in tracking body composition.
Temperature And Humidity Sensors
Some advanced trackers have temperature and humidity sensors to monitor the environment around you. This can help you understand how weather affects your workouts, or remind you to stay hydrated on hot days.
Environmental sensors are less common, but they are useful for outdoor sports and for people who want more detailed health data.
Uv Sensor
A UV sensor detects the level of ultraviolet radiation from the sun. Too much sun exposure can increase the risk of skin damage and cancer. Some fitness trackers use UV sensors to warn you if you are getting too much sun and remind you to use protection.
While not a must-have for everyone, UV sensors are a thoughtful addition for people who spend a lot of time outdoors.
How Sensors Work Together
No single sensor can track every aspect of your health. Fitness trackers use a combination of sensors and smart software to provide a complete picture. For example, to track sleep, a device may use the accelerometer, heart rate sensor, and ambient light sensor together.
This helps it know when you are lying still, your heart rate slows, and the room is dark—signs that you are asleep.
During a workout, the accelerometer tracks your movement, the gyroscope detects your orientation, and the heart rate sensor measures your pulse. GPS and magnetometer add location and direction data for outdoor activities.
This teamwork between sensors is what makes modern fitness trackers so powerful.
Comparison Of Popular Fitness Trackers And Their Sensors
To see how these sensors appear in real products, here’s a comparison of three popular fitness trackers:
| Sensor | Fitbit Charge 5 | Apple Watch Series 8 | Xiaomi Mi Band 7 |
|---|---|---|---|
| Accelerometer | Yes | Yes | Yes |
| Gyroscope | Yes | Yes | Yes |
| Optical HR Sensor | Yes | Yes | Yes |
| Magnetometer | Yes | Yes | No |
| Barometer | Yes | Yes | No |
| Ambient Light Sensor | Yes | Yes | Yes |
| Skin Temperature Sensor | Yes | Yes | No |
| SpO2 Sensor | Yes | Yes | Yes |
| ECG Sensor | Yes | Yes | No |
| Bioimpedance Sensor | Yes | No | No |
| Temperature/Humidity Sensor | No | No | No |
| UV Sensor | No | No | No |
This table shows that even popular brands focus on slightly different sensors. Choosing the right tracker often means picking the features that matter most to your lifestyle.
Advanced And Specialized Sensors
Some fitness trackers use advanced sensors for specific activities or health concerns. Here are a few examples:
Gps
While not technically a sensor, the GPS chip is crucial for outdoor activity tracking. GPS allows your tracker to record your exact route, speed, and distance during runs, walks, or bike rides. Without GPS, distance estimates rely only on step counting, which can be much less accurate.
Some trackers have built-in GPS, while others use your smartphone’s GPS via Bluetooth. Built-in GPS is more convenient and accurate, but it can drain the battery faster.
Electrodermal Activity (eda) Sensor
The EDA sensor measures tiny changes in the sweat level of your skin. This data can reveal your stress level, as sweat glands are activated during stress. Fitbit’s Sense line uses EDA to help users understand and manage their stress.
Blood Pressure Sensor
A few cutting-edge wearables now offer blood pressure monitoring. These use either optical or pressure-based sensors, but most wrist trackers are not yet as reliable as upper-arm monitors used in clinics. Still, this is a promising area for future devices.
Glucose Sensor
Non-invasive glucose monitoring is a “holy grail” for people with diabetes. Some companies are experimenting with optical sensors for glucose, but reliable wrist-worn glucose tracking is not yet available for consumers. For now, most trackers do not include this sensor, but the technology is evolving.
Fall Detection And Emergency Sensors
Some smartwatches use a mix of sensors (accelerometer, gyroscope, and more) to detect if you have fallen. If the watch senses a hard fall and you do not respond, it can alert emergency contacts or services.
This is a practical feature for older adults or people at risk of falls.
How Accurate Are Fitness Tracker Sensors?
No sensor is perfect. Even high-end fitness trackers can make mistakes. Here’s why accuracy can vary:
- Placement: Wearing your tracker too loose or too tight affects readings.
- Skin tone and tattoos: Optical sensors can be less accurate on darker skin or over tattoos.
- Movement: Fast or jerky movements can confuse accelerometers and heart rate sensors.
- Environmental factors: Cold weather, sweat, and humidity can impact sensor function.
Manufacturers constantly update software and algorithms to improve accuracy. Still, it’s important to use fitness tracker data as a helpful guide, not as exact medical information.
Here’s a quick comparison of typical sensor accuracy in fitness trackers:
| Sensor Type | Typical Accuracy | Best Use |
|---|---|---|
| Accelerometer | 90-95% | Step Counting, Basic Movement |
| Optical HR Sensor | 85-95% | Resting Heart Rate, General Exercise |
| SpO2 Sensor | 80-95% | General Oxygen Tracking |
| ECG Sensor | 98-99% (when used correctly) | Heart Rhythm Monitoring |
| Bioimpedance | 70-90% | Body Composition Trends |
Non-obvious Insights For Beginners
Many people new to fitness trackers assume that:
- All trackers are equally accurate: In reality, sensor quality and software vary widely between brands and models. A $30 tracker will not match a $300 smartwatch for accuracy, especially for heart rate and SpO2.
- More sensors always mean better tracking: It’s easy to think that a device with more sensors is better. However, if the software is not well-designed, extra sensors can produce confusing or unreliable data. It’s better to have a few well-integrated sensors than many poorly used ones.
Practical Tips For Getting The Best From Your Tracker’s Sensors
- Wear your tracker snugly: Especially important for heart rate and SpO2 sensors. If it’s too loose, light can leak in and reduce accuracy.
- Update your device: Manufacturers often release updates to improve sensor accuracy.
- Understand the limits: Don’t panic over a single odd reading. Look for trends over days or weeks.
- Use the right device for your needs: If you’re serious about running, get a tracker with GPS and barometer. If you care about heart health, choose one with ECG.
- Clean the sensors: Sweat and dirt can block light-based sensors. Wipe your tracker regularly.
How To Choose A Fitness Tracker Based On Sensors
Picking the right fitness tracker depends on your goals. Here’s what to consider:
- For step tracking and general fitness: Look for a good accelerometer and heart rate sensor.
- For outdoor sports: Choose a device with GPS, barometer, and magnetometer.
- For health monitoring: Prioritize devices with SpO2, ECG, and skin temperature sensors.
- For body composition: Look for bioimpedance sensors.
- For stress and recovery: EDA and temperature sensors can add valuable insights.
Think about what matters most to you, and compare sensor features before buying.
The Future Of Fitness Tracker Sensors
Sensor technology is advancing quickly. In the next few years, expect to see:
- Better accuracy: Improved algorithms and AI will make data more reliable.
- New sensors: Blood pressure, hydration, and even non-invasive glucose sensors may become common.
- Smaller devices: Sensors will get smaller and more efficient, making trackers even less noticeable.
- Personalized insights: Combining sensor data with AI will help trackers give more useful, tailored advice.
Soon, your fitness tracker might detect changes in your health before you notice any symptoms.
If you want to learn more about how sensors work in wearables, check out this detailed guide from the Wikipedia on Wearable Technology.
Frequently Asked Questions
What Is The Most Important Sensor In A Fitness Tracker?
The accelerometer is the most important sensor for basic fitness tracking. It counts your steps, detects movement, and is the foundation for most activity tracking. For people interested in health data, the optical heart rate sensor is also essential.
Are Fitness Tracker Sensors Accurate Enough For Medical Use?
Most fitness tracker sensors are not as accurate as medical equipment. They are designed for general health and fitness monitoring, not for diagnosis. If you need medical-grade accuracy, always use certified devices and consult a doctor.
Can Fitness Trackers Detect Heart Problems?
Some advanced fitness trackers with ECG sensors can detect irregular heart rhythms, like atrial fibrillation. However, they are not a replacement for professional medical exams. Use these features as early warnings, not as a diagnosis.
Why Does My Fitness Tracker Sometimes Count Steps When I’m Not Walking?
This usually happens because the accelerometer detects movement similar to walking, such as waving your arm or brushing your teeth. Manufacturers are working to improve software filters, but occasional false steps are still possible.
Do I Need A Tracker With All The Latest Sensors?
Not everyone needs every sensor. Choose a tracker based on your needs. For basic fitness, a simple device is enough. For advanced health or sports data, look for trackers with extra sensors like GPS, SpO2, or ECG.
Fitness trackers are powerful tools, but understanding their sensors helps you use them wisely. Whether you’re new to wearables or a long-time fan, knowing what’s inside your device can help you reach your goals and stay informed about your health.
